LETECH special equipment

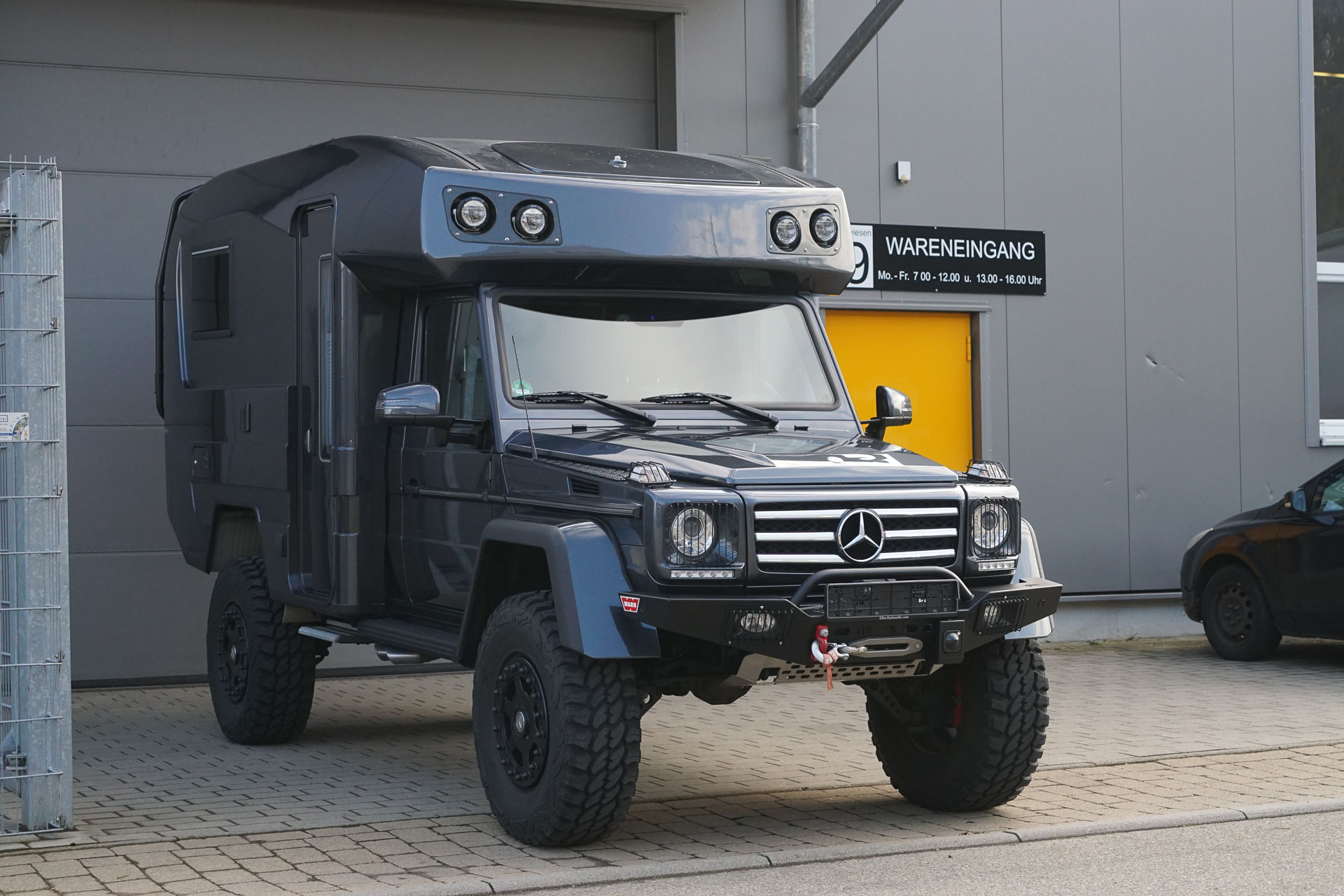

Wheelbase extension to 3,428 mm

Body conversion to 2-door driver’s cab with widened B-pillar
Monocoque expedition cab made of carbon fiber composite material

Reinforced coil spring suspension

Öhlins shock absorbers adjustable in rebound and compression damping

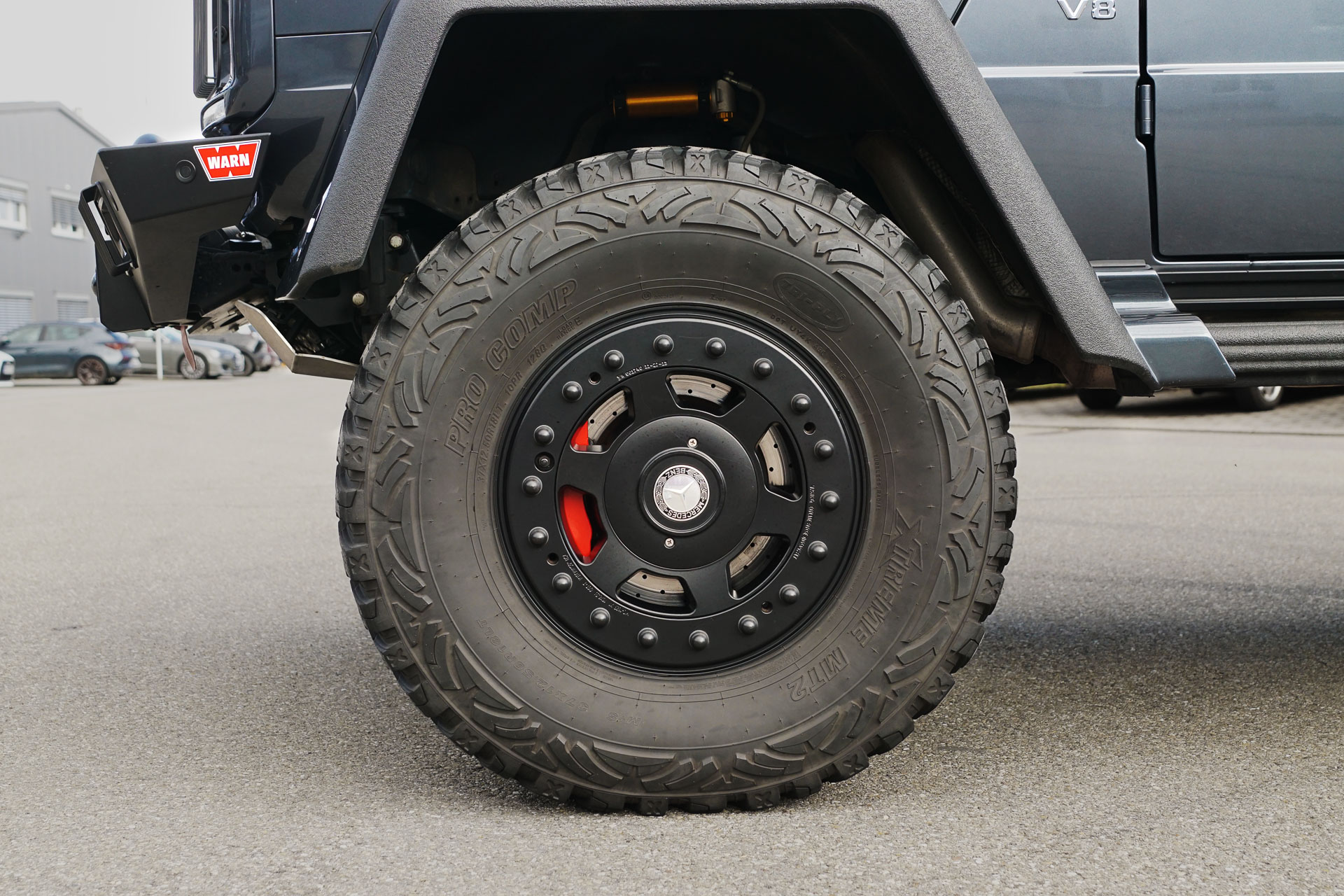

37×12.5 R18 tires on Hutchinson beadlock rims

Tire pressure regulation system

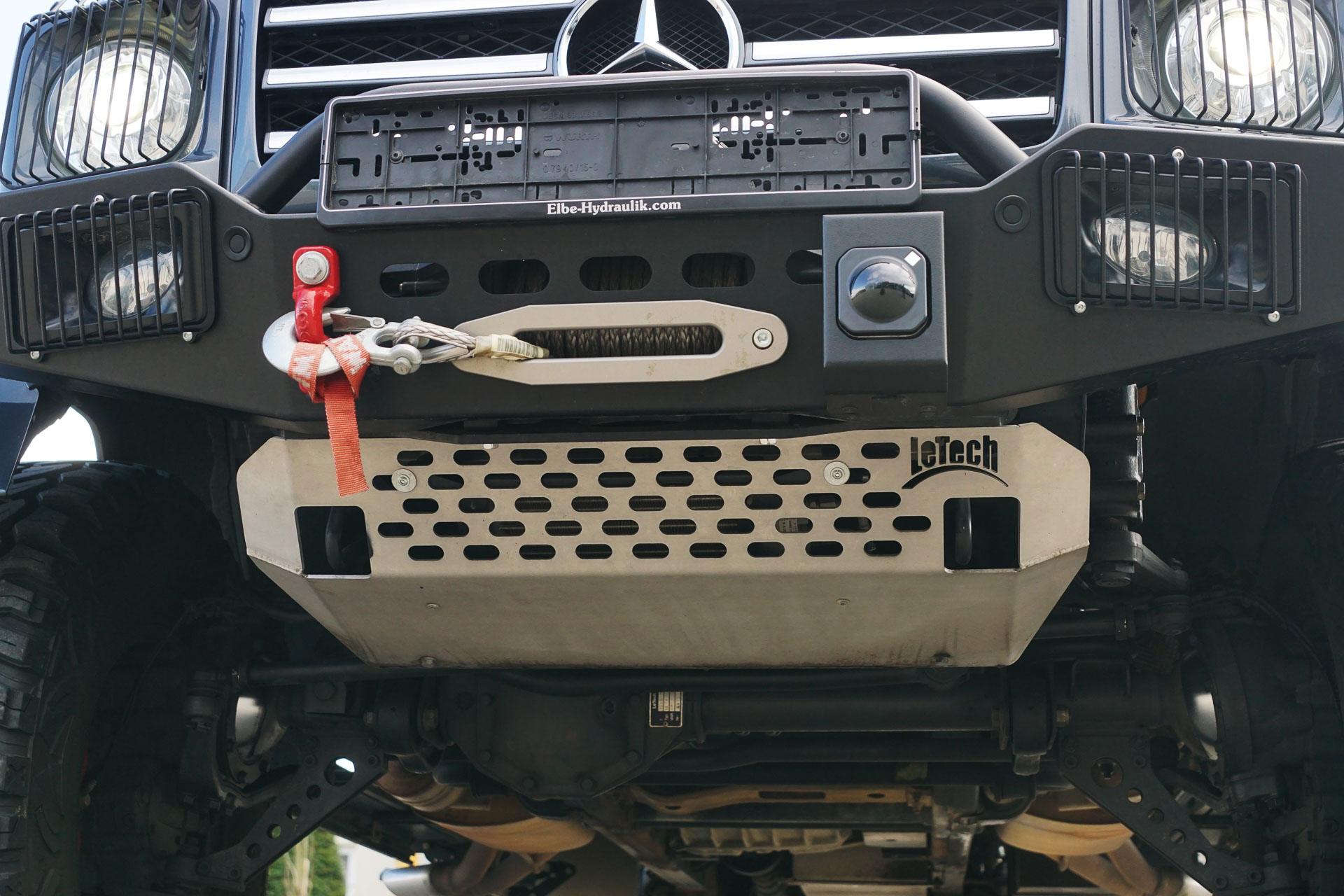

LETECH cable winch bumper electric cable winch Warn Zeon 10 with plastic cable

Fuel tank 96 liters, additional tank approx. 100 liters for pumping

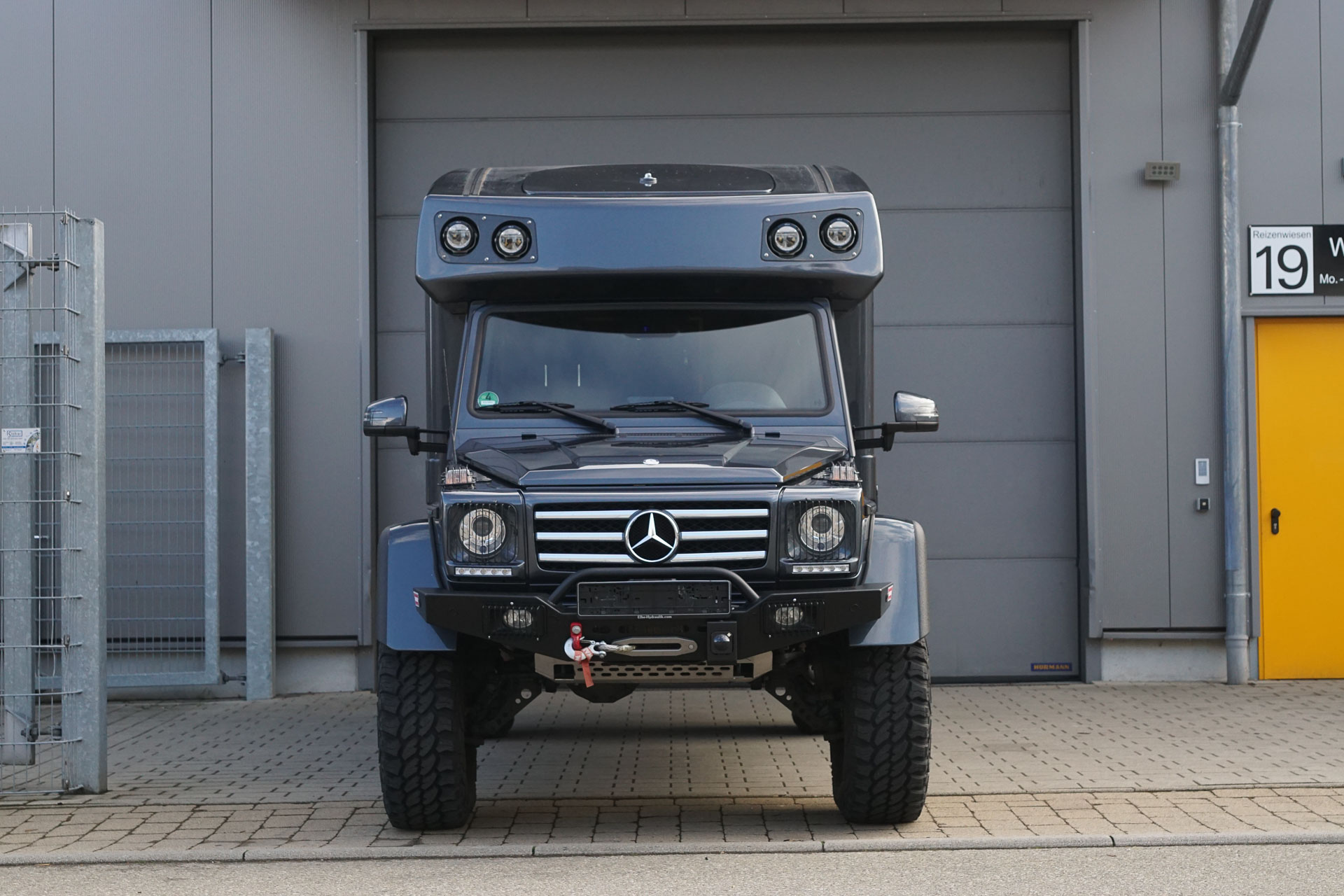

4 x Hella LED auxiliary headlights in the roof

Twin-pipe exhaust system left / right from AMG G 65

External dimensions approx.

Overall length approx. 5,700 mm
Overall width approx. 2,040 mm
Overall height approx. 2,900 mm

Unladen weight 3,250 kg

Internal dimensions approx.

Length 2,700 mm,
Width 1,950 mm
Max. height 1,920 mm

Roof hatch 310 x 310 mm

Interior fittings

Furniture made from multi-layer lightweight panels with a robust laminate (HPL) surface

Teak table can be lowered

Furniture fittings made of nickel-plated brass or stainless steel

Stainless steel compression fasteners

Teak wood flooring

GRP monocoque construction

Access to the cab with privacy screen
Windows with real glass Insulating glazing with integrated mosquito protection and blackout

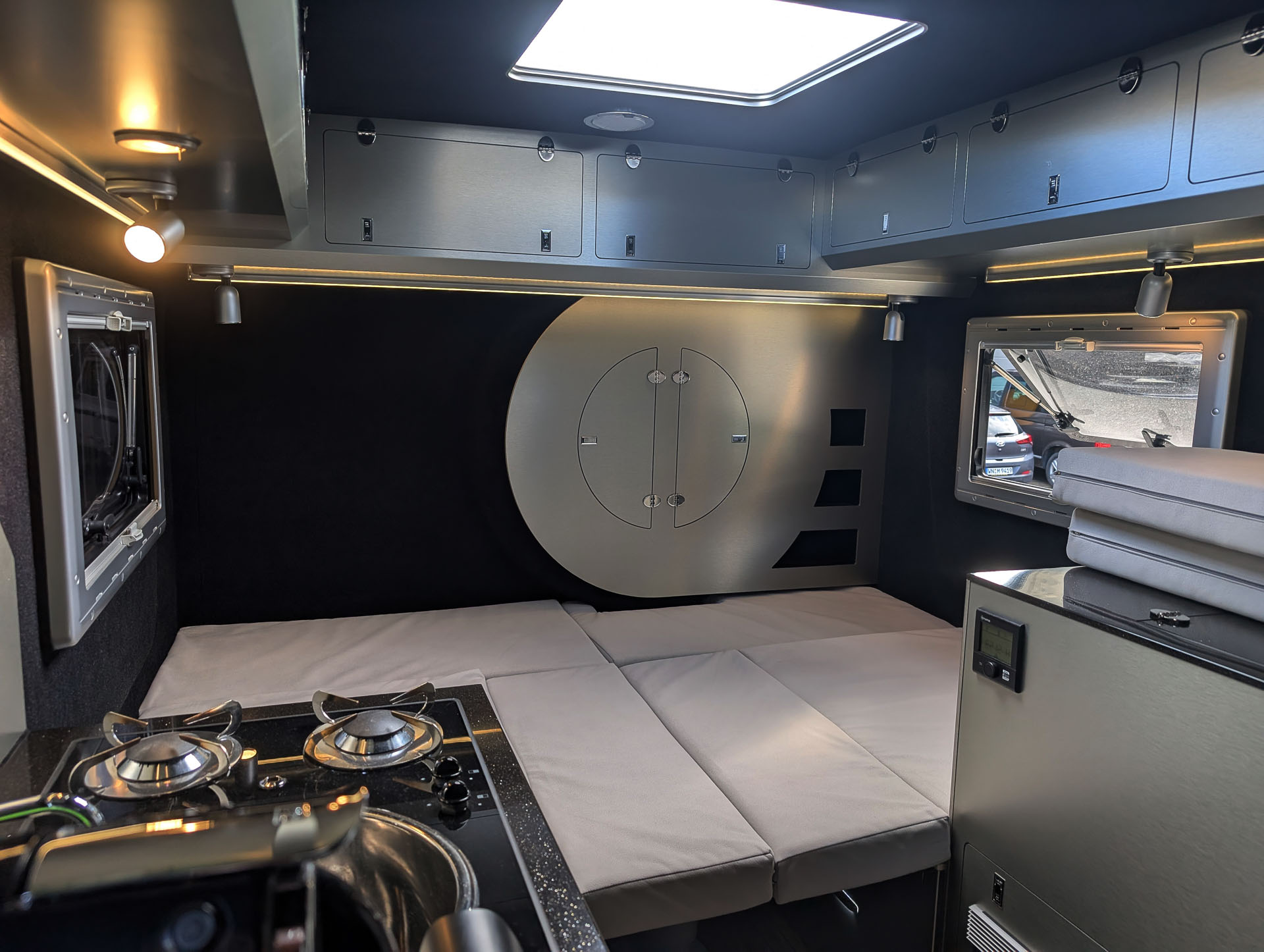

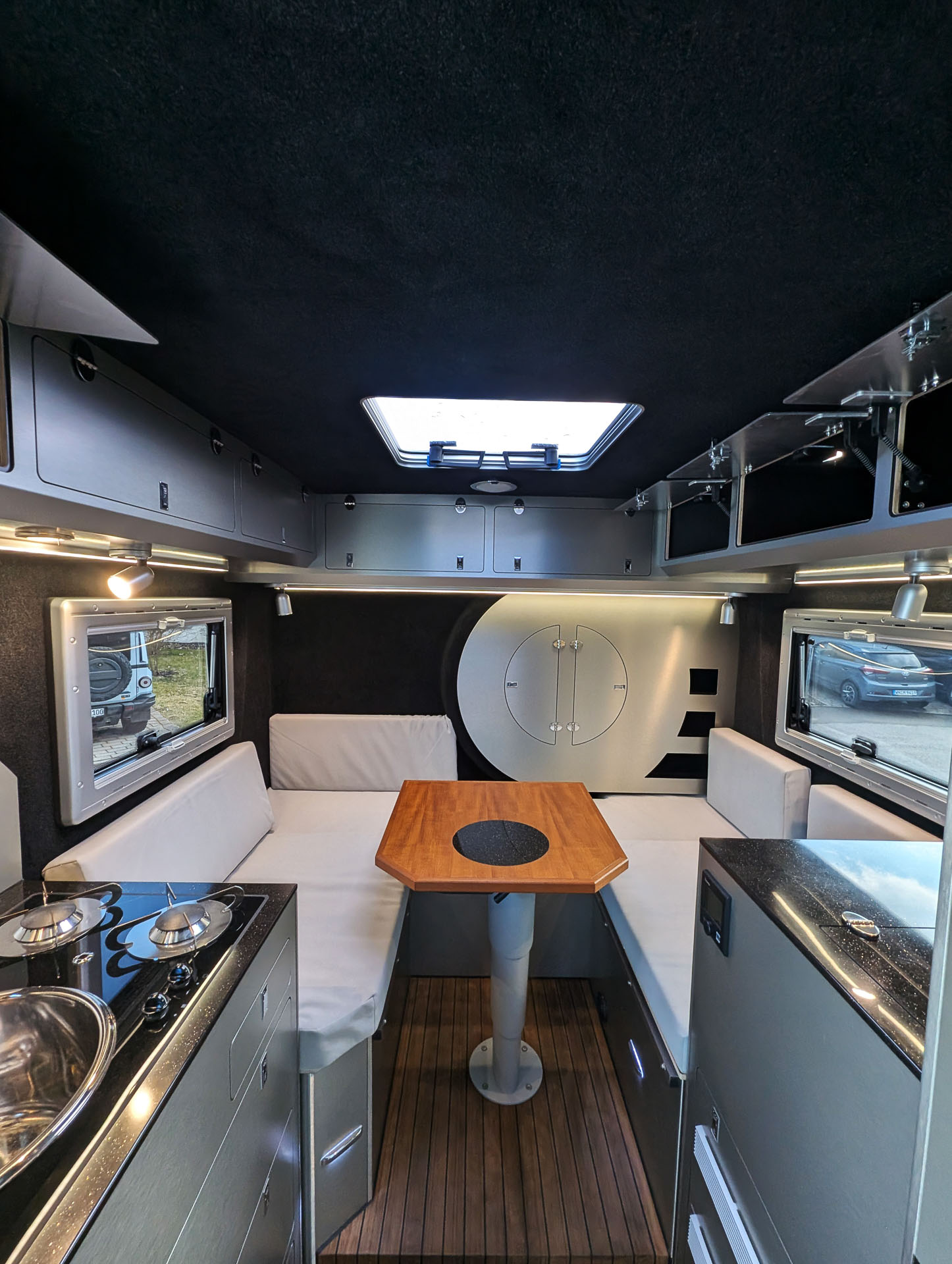

Seating group

Seating group can be converted into a bed approx. 1,900 x 1,340 mm

Height-adjustable and rotatable table frame with a solid teak tabletop with inlay

Upholstery fabric microfiber light

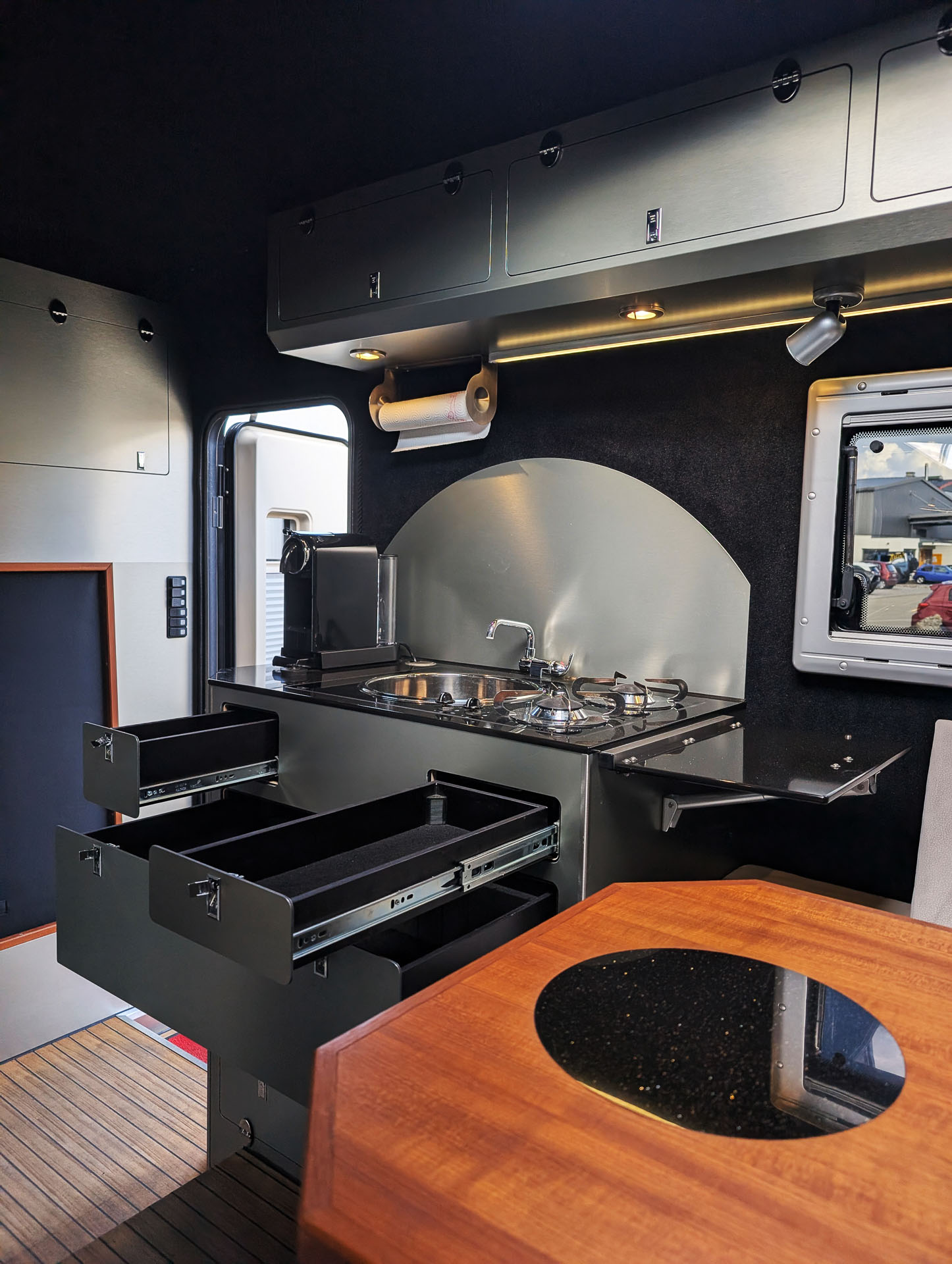

Kitchen

Worktop with flush-mounted sink

Gas hob with 2 burners

2 x compressor fridge/freezer combination 29/29 liters

Base units with drawers, ball bearing mounted with self-closing mechanism

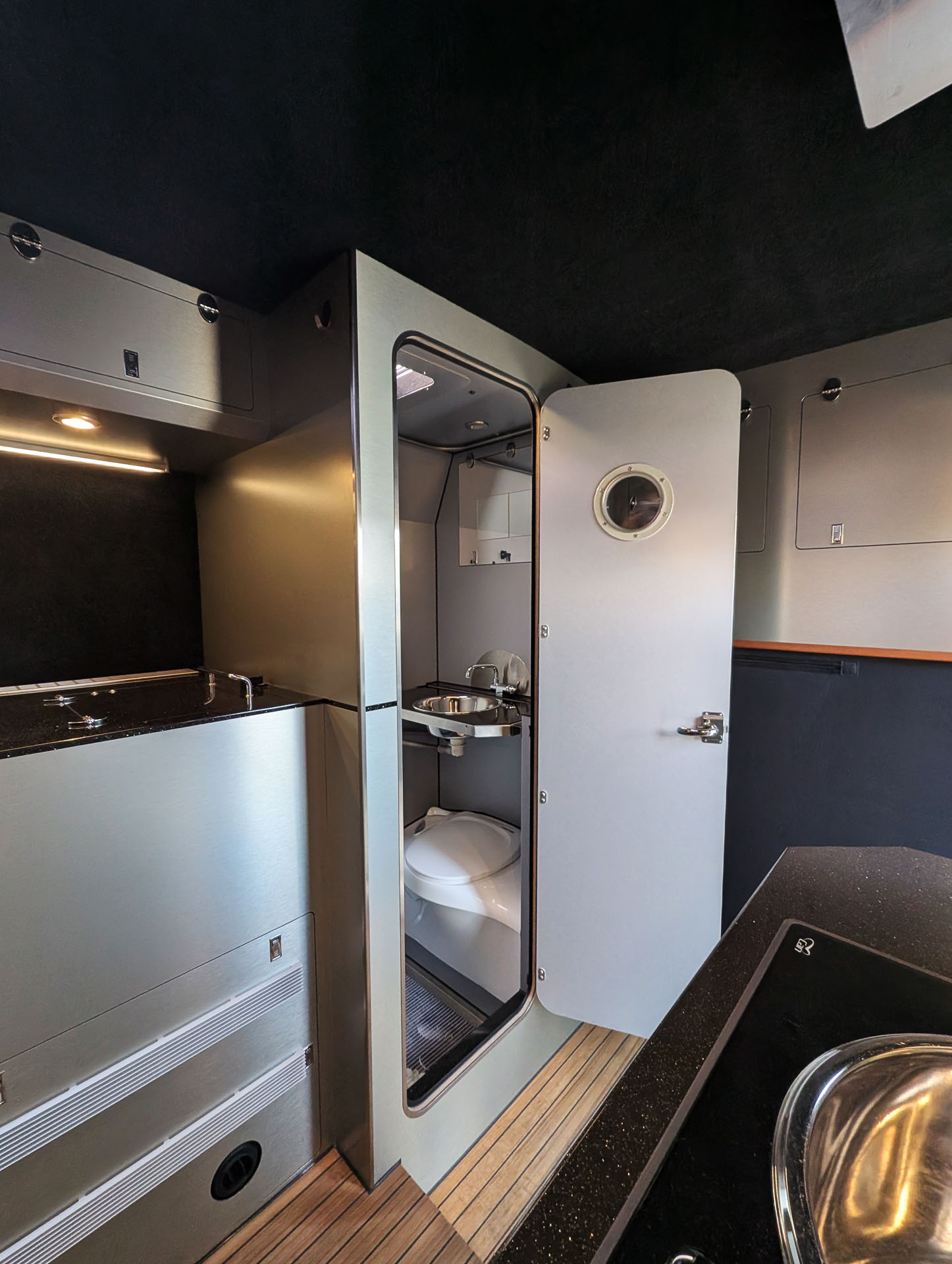

Sanitary room

Mirror cabinet

VA shower tray

Thetford C 402 Cassette toilet With 15 l flush water and 19 l waste tankVA shower tray

VA washbasin, hinged with mixer tap

Storage compartments

All-round wall units with height-adjustable shelves

All wall units with lighting

Kitchen cabinet with three spacious drawers

Large alcove as storage spaceKitchen cupboard with three spacious drawers

Power supply

Control panel for monitoring the power supply IBS System DBS

Protection of the individual circuits via thermal circuit breakers with LED function indicator

Independent power supply for the superstructure from an AGM battery

Battery capacity 2 x 12V/110 AH

Clayton inverter/charger Combi sine wave power 3000 W / 230 V, charging power 25 A/12 V

Charger for input voltage 95 -235 V, charging capacity 25 A

Clayton high-performance battery to battery charger with I-U charge controller, charging capacity 30 A

Lighting via power LED

Reading lamps

Water supply

100 liter fresh water tank with level indicator LED

6 liter hot water boiler in the Truma heater

60 liter waste water tank

Active carbon water filter

Sensor pump for water supply

High-quality fittings

Outdoor shower

All water installations are installed frost-proof in the interior

Heating system

6 KW Truma air / water heating with gas

6 liter hot water boiler integrated

Gas supply

via 2x 6 kg gas cylinders with double pressure regulator. Central gas filling connection with 5 different adapters for filling at any LPG filling station in Europe.

Other equipment highlights

LETECH spare wheel holder at the rear – only the tire cover

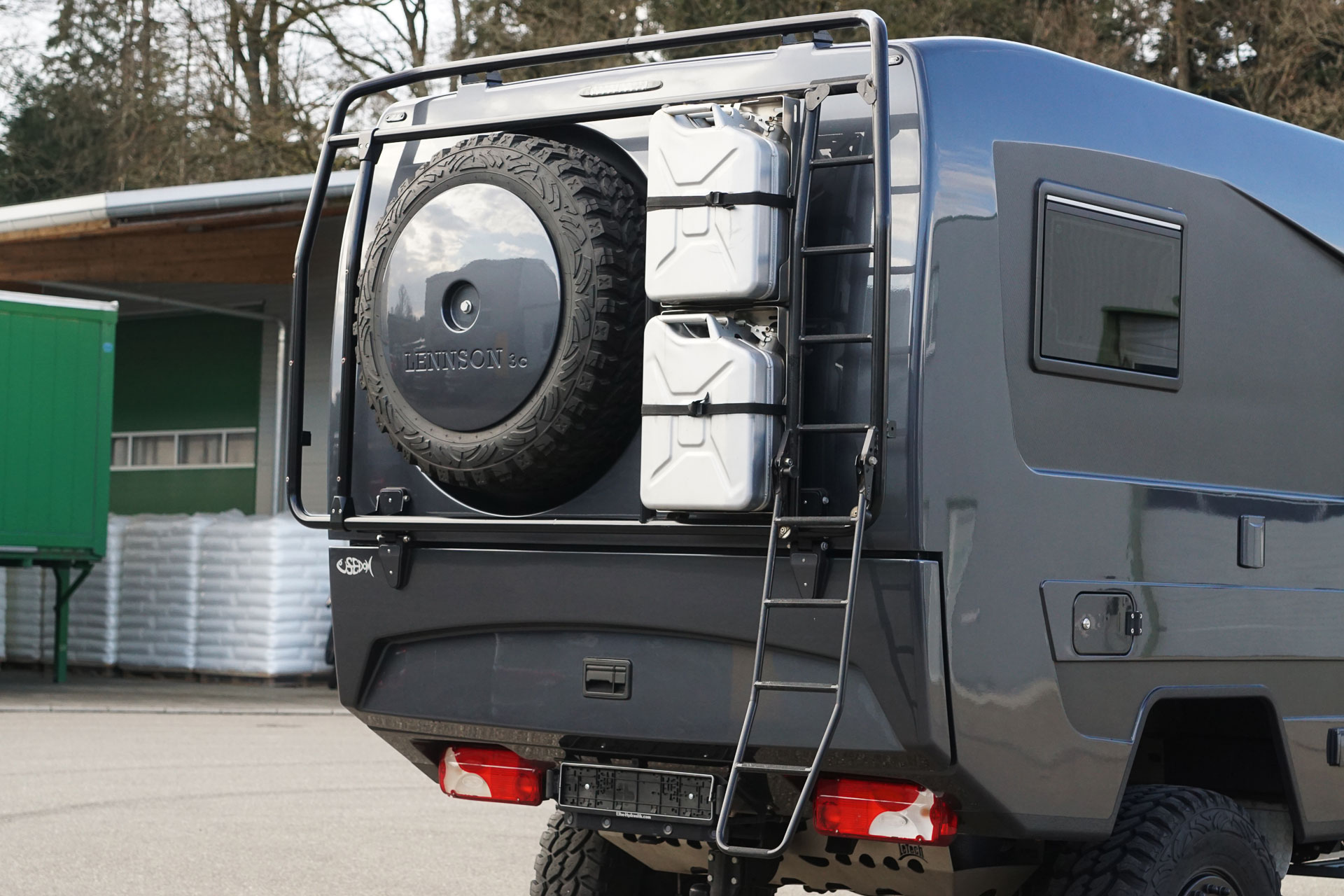

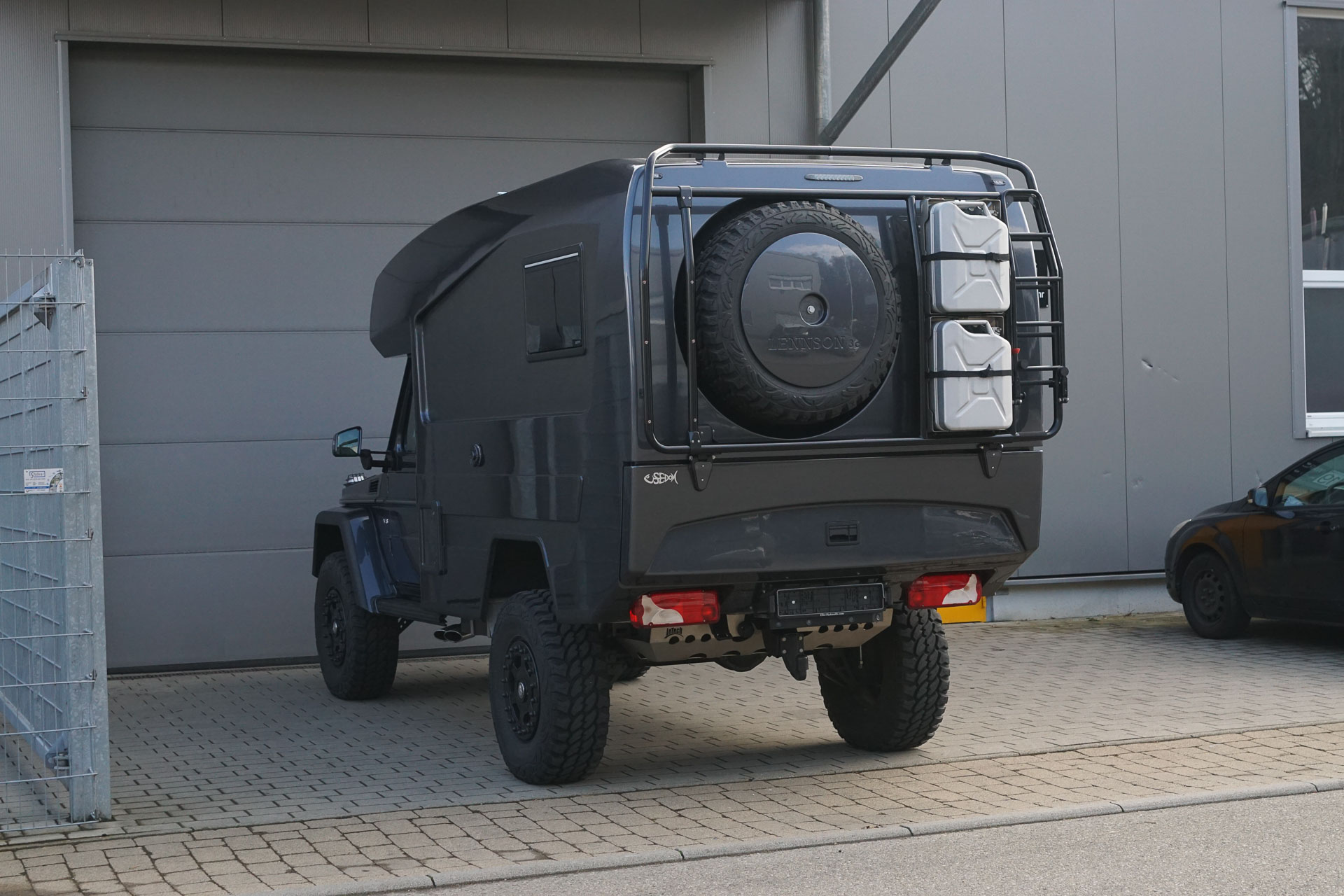

LETECH rear carrier with ladder and canister holder, 2 x 20 l canisters

Spare wheel on alcove

Airline rails

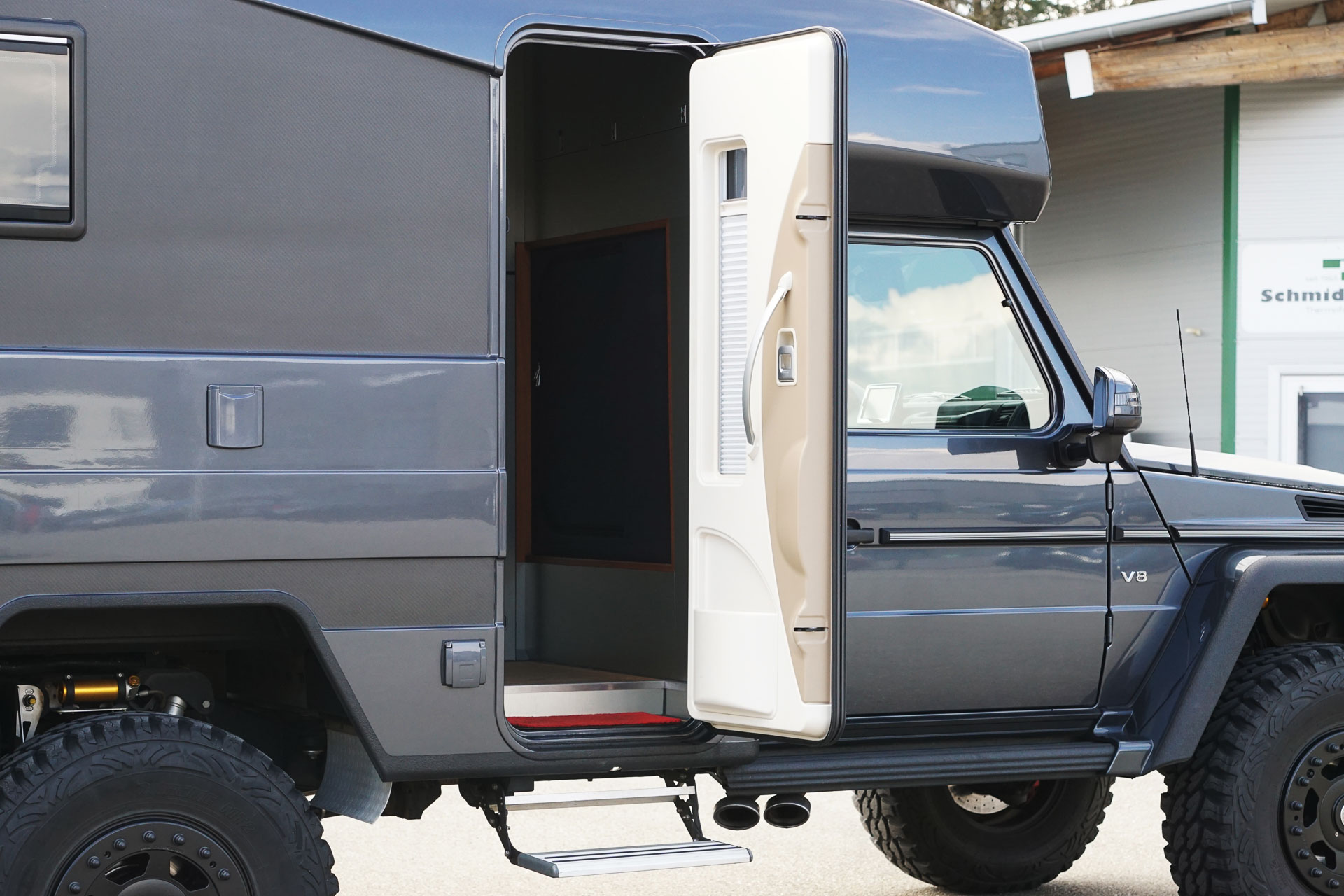

Omnistep step electric with LED lighting.
